Oil Cap Mould - China Manufacturers, Suppliers, Factory

We believe that long time period partnership is a result of top of the range, value added services, rich expertise and personal contact for Oil Cap Mould, Plastic Closures, Plastic Injection Mold Cap Mold Manufacturer, Flip Cap Mould,Plastic End Caps For Square Tubing Mould. Objects won certifications together with the regional and international primary authorities. For far a lot more detailed information, make sure you make contact with us! The product will supply to all over the world, such as Europe, America, Australia,Tajikistan, Jakarta,Luxembourg, United Kingdom.Wide selection and fast delivery for you! Our philosophy: Good quality, great service, keep improving. We are looking forward that more and more oversea friends join in our family for further development near the future!


NamePlastic Cap Mould
Cavity1-32
Mould base materialP20 , 45# , 4CR13 , .ECT
Core&Cavity materialS136,718, P20,2378,2316,4CR13,P20 .ECT
RunnerCold /Hot (LOCAL BRAND,HASCO,YUDO,HUSKY .ETC)
Life time3,000,000 shots
Quick T1 time25-40 days
Package

wooden case

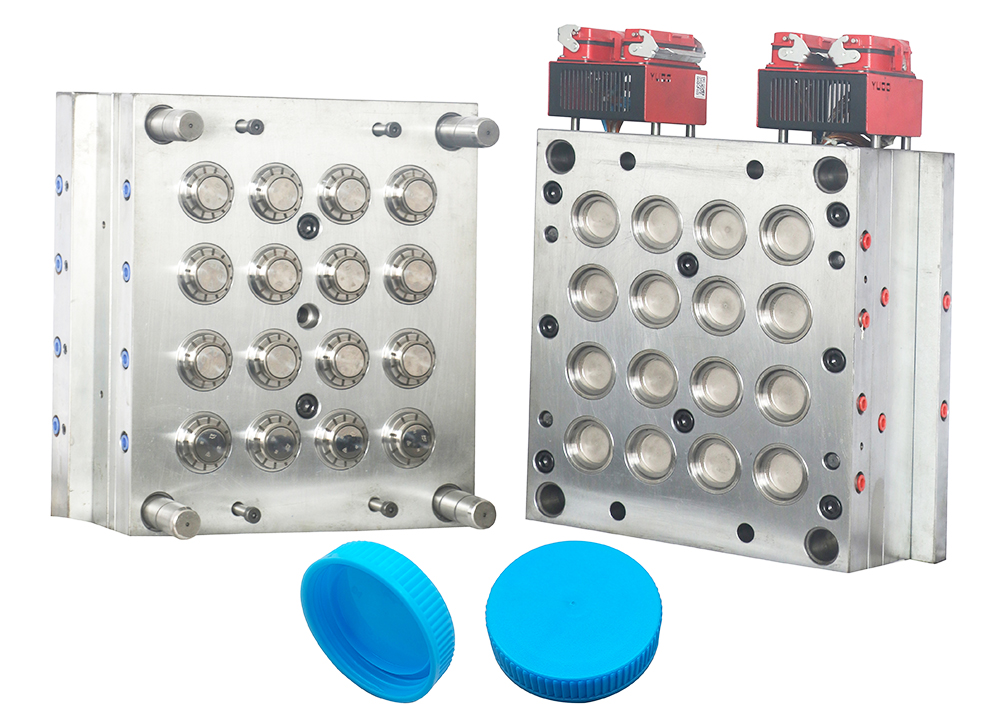

Oil Bottle Cap Mould Details
Highlight: Excellent in interchangeable cores molds design & making. Molds can be interchangeable on molding machines.
Mold Steel: Buderus, Assab, AISI & JIS(including preharden steel and fully harden steel)
P20(=1.2311),S136(=1.2344), Starvax 420(=stainless steel)
Mold Base: Hasco standard, European standard, world standard Surface Finish: Texture(MT standard), high gloss polishing Engraving: Date stamps(year and month), logotype, etc Mold sampling-Mold trial: Trial molding machine available: from 50~2500T
Oil Bottle Cap Mould
The mouth of edible oil bottle is 28MM, 30MM, 45MM. 28MM capacity is usually 500ml, 1L, 1.5L, 2L. 2.5L. The cap has a combination of upper and lower caps. The upper cap can be divided into two types: tear off anti-theft and non anti-theft. The lower cap is mostly opened by the middle pull ring. There are pull rings in some flap cap of 28MM and 30MM, it is more convenient to open and close them directly without unscrewing the threads
1) Saving 10%-30% cost than others.
2)  Direct factory price
3) Life:3, 000, 000 time
4) 2D and 3D provided
5) Quick T1  time: 25-40 days
6) More than 15 years experience
